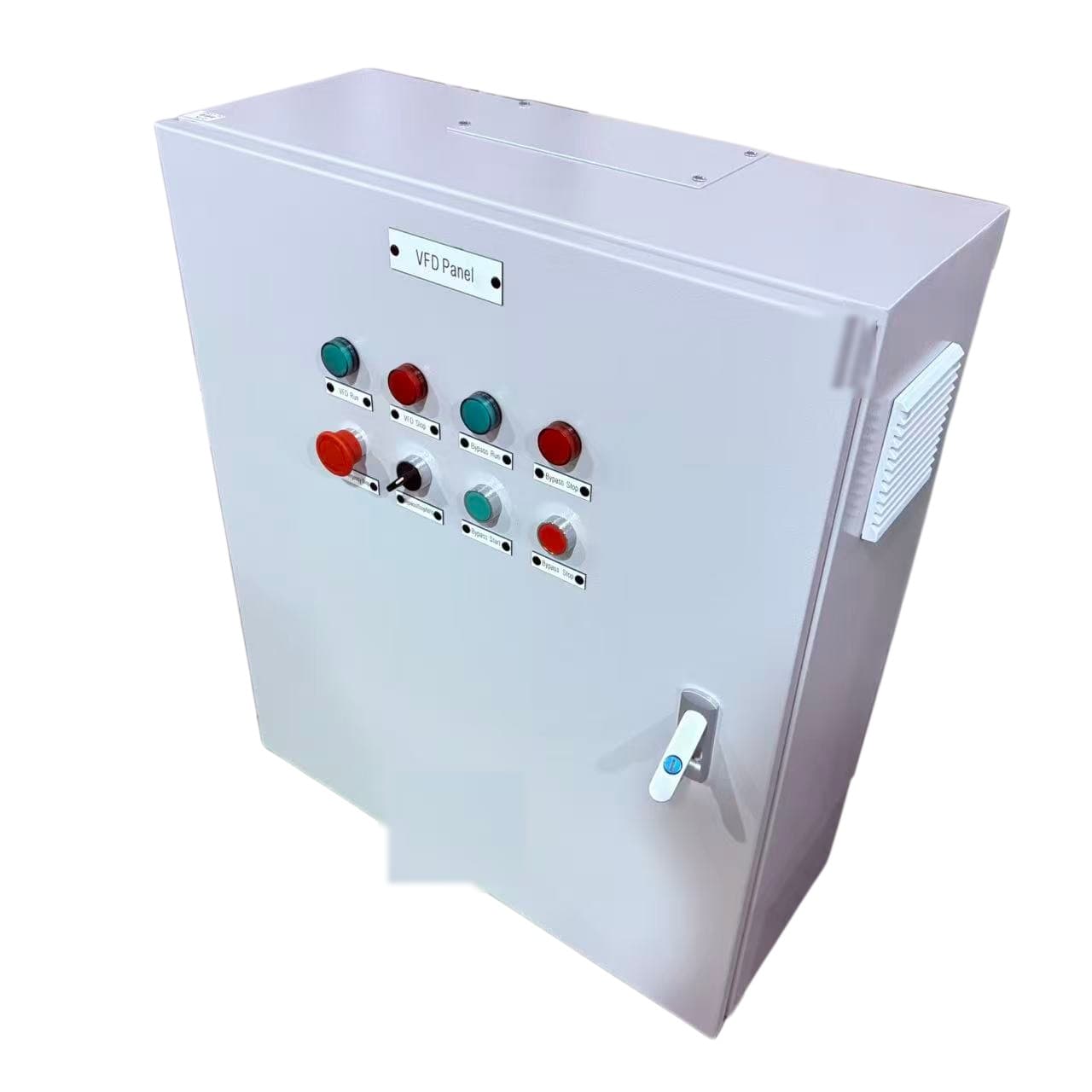

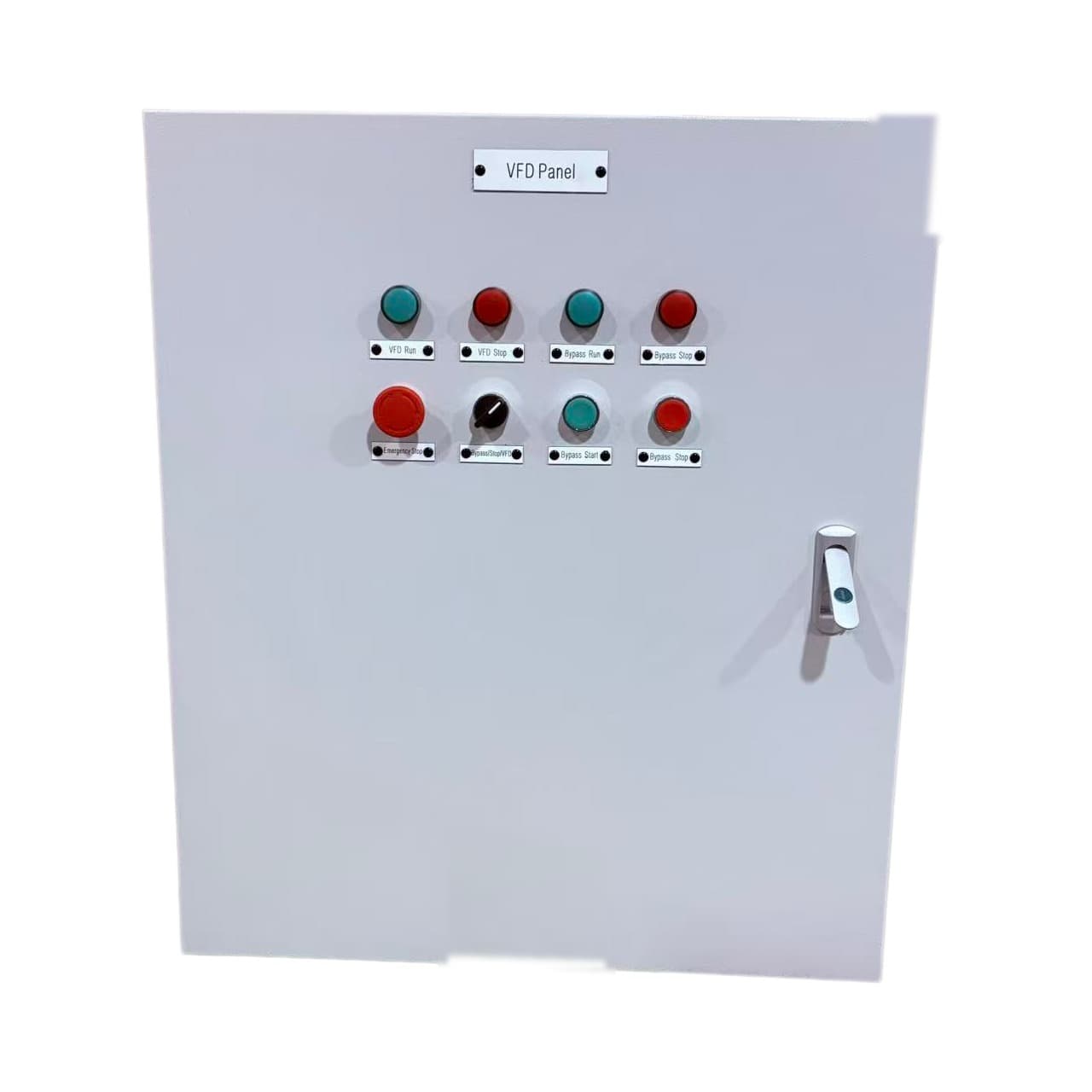

What a Duplex VFD Pump Control Panel Does
A duplex VFD pump control panel runs two pumps, a duty unit and a standby unit, and alternates which one carries the load so neither runs continuously under the full duty cycle. The variable frequency drive inside the panel ramps pump motor speed up or down based on real-time pressure feedback from the line, instead of letting pumps cycle hard on and off every time demand shifts. For a building or facility, that means steadier delivered pressure at the tap, less mechanical wear from repeated starts and stops, and a built-in standby pump that takes over automatically if the duty pump faults or needs maintenance, without someone manually switching pumps.
TankSmith supplies these panels as part of a pressure booster system paired with a modular storage tank, so the control logic, the pump, and the tank are sized together for the same facility rather than bought as separate pieces that may not match. The panel is one of three components TankSmith is accountable for under a single contract: the tank side (storage), the pump side (pressure), and the control side (the VFD duplex panel itself), with one team responsible for supply, installation, and commissioning across all three.
How Pressure Feedback and Auto-Alternation Work
Pressure feedback is the mechanism that lets the VFD respond to demand instead of running on a fixed schedule. A pressure sensor on the discharge line reports current line pressure back to the panel continuously, and the VFD increases or decreases pump motor speed to close the gap between actual pressure and the setpoint. The practical effect for a building is that taps, showers, and fire-reserve lines see steady pressure whether one fixture or twenty are drawing water at once, instead of the pressure surge and drop that fixed-speed pumps produce every time they cycle on or off.
Auto-alternation is the second half of the duplex design. Rather than running one pump continuously while a second sits idle as a cold spare, the panel logic rotates which pump is active, so both units accumulate roughly even run hours. If the lead pump trips on a fault, the standby pump takes over automatically rather than waiting for a manual switchover, which matters most in facilities that cannot tolerate a pressure outage, such as hospitals, hotels, and multi-story condominiums with rooftop tanks. Because the VFD ramps speed up and down rather than hard-starting and hard-stopping the motor, mechanical stress on the pump, seals, and piping is lower than with fixed-speed on/off control, which is the basis for the panel's role in extending the service life of the booster system it controls.
How the Control Panel Fits Into a Turnkey Tank and Pump System
TankSmith's core business is pairing a modular storage tank, a booster pump, and this VFD duplex control panel under one contract, rather than selling any one piece in isolation. The tank side spans 1,000 liters to 500,000 liters per system, available in FRP, GRP/SMC, hot-dip galvanized (HDG) steel, or stainless steel 304/316 bolted panel construction depending on the water quality and site requirements. The pump side uses vertical multistage centrifugal booster pumps (CDL/CDLF series) in SS304, and the control side is the VFD duplex panel described above.
Because one team specifies, supplies, installs, and commissions all three components together, the control panel's VFD settings, the pump's duty point, and the tank's outlet sizing are matched to each other at the design stage instead of being reconciled on site after separate deliveries. Typical installation for a complete system, from 20 KL to 500 KL tank capacity, runs 5 to 14 days depending on capacity and how ready the site's civil works are when the crew arrives. This turnkey structure is the main reason to buy the control panel from TankSmith specifically rather than sourcing a VFD panel, a pump, and a tank from three separate suppliers and coordinating the integration independently.
Power Range and Enclosure Rating
TankSmith's VFD duplex control panels are sized to match vertical multistage centrifugal booster pumps ranging from 0.37 kW to 200 kW, covering everything from a small rooftop retrofit on a residential or small commercial building up to a large industrial or institutional installation. The pumps paired with these panels are SS304 construction, built for continuous duty in a booster application rather than intermittent domestic use. The control panel enclosure itself is IP54-rated, meaning it is protected against dust ingress and against water splashed or sprayed from any direction, a rating suited to rooftop mechanical rooms, pump rooms, and other semi-exposed installation points common in Philippine buildings.
Inside the enclosure, the VFD communicates with pressure feedback sensors on the line to adjust pump speed continuously rather than stepping between fixed on/off states, and the duplex logic handles alternation between the duty and standby pump automatically. Buyers sizing a system should treat the power range and enclosure rating as starting inputs for a quote: TankSmith matches panel and pump kW to the building's actual demand curve and tank capacity rather than defaulting to one standard size.
This single-source specification is what allows TankSmith to commission the tank, pump, and panel together and hand over a system that has already been tested as a unit rather than three components a contractor has to integrate on site. Buyers comparing panels on spec sheets alone should confirm that whatever panel they are quoted states its power range, enclosure rating, and alternation logic explicitly, since all three determine whether the panel will actually hold pressure steady under real demand swings. The full specification sheet covers the pressure booster pump system rather than the control panel in isolation, which is usually what procurement teams need to close out a bid or a building permit submission.
| Specification | Detail |
|---|---|
| Variable frequency drive | 0.37 kW to 200 kW, factory function-tested, matched to pump duty point |
| Enclosure | IP54 ingress protection for mechanical rooms and weather-protected rooftops |
| Pressure feedback | Transducer, 0 to 10 bar or 0 to 16 bar range, 4-20 mA output, PID control to plus or minus 0.1 bar |
| Pump pairing | CDL or CDLF vertical multistage centrifugal pumps, SS304 construction |
| BMS integration | Modbus RTU or dry contact signals where specified |
| Install timeline | 5 to 14 days for 20 KL to 500 KL systems, plus 2 to 7 days provincial delivery |
Sizing a VFD Duplex Panel to Your Pump System
Sizing a VFD duplex panel starts with the pump it will control, not the panel in isolation. TankSmith's CDL/CDLF booster pumps span 0.37 kW to 200 kW, and the duplex panel's drive rating is matched to that pump's motor so the VFD neither underpowers the pump under peak demand nor sits oversized and inefficient at normal flow. The reference table below shows typical duplex configurations TankSmith proposes at quotation stage.
| Building Type | Typical Duplex Pump Set | VFD Duplex Panel Rating |
|---|---|---|
| 10-story condominium, 200 units | 2 x 7.5 kW | 15 kW duplex panel |
| 150-room hotel with laundry and kitchen | 2 x 15 kW | 30 kW duplex panel |
| 300-bed hospital, redundancy and fire reserve | 2 x 22 kW | 45 kW duplex panel |
| Food manufacturing with process water and CIP | 2 x 37 kW | 75 kW duplex panel |
| High-rise office tower above 20 floors | 2 x 55 kW | 110 kW duplex panel |
The second input is the tank side of the system: TankSmith's modular tanks run from 1,000 liters up to 500,000 liters across FRP, GRP, HDG steel, and stainless steel bolted panel construction, and the booster pump, and therefore the panel driving it, is sized against the building's draw-off pattern and the tank's storage buffer, not against tank capacity alone. Because TankSmith supplies the tank, the pump, and the control panel under a single contract, sizing happens once, as a system, instead of being handled by three separate vendors who size their own piece and leave the interface to the contractor. This single-team approach is also what supports the stated install timeline of 5 to 14 days for installs in the 20 KL to 500 KL range, since the pump, panel, and tank arrive matched and ready to commission together rather than requiring on-site reconciliation between mismatched components sourced separately.
If you already own pumps and only need the control panel, tell us the existing motor's kW rating, duty point, and whether it is a single-pump or duplex setup. The panel is specified to match what is already installed rather than assuming a like-for-like replacement, since motor characteristics vary by brand and age.
Where This Setup Is Used
Commercial laundries size their pump and VFD panel against linen throughput measured in kilograms per day, since wash-cycle water demand spikes sharply rather than drawing evenly. Hotels and resorts most often need this configuration for rooftop retrofits, where an existing tank is kept but the booster pump and control panel are replaced or added to fix weak pressure on upper floors. Hospitals and clinics use the duplex alternation specifically for redundancy, since a single pump failure cannot be allowed to drop pressure on a code-compliant fire reserve or on critical-care water supply. Food manufacturing sites pair the system with WRAS-certified tank panels for potable water contact.
Warehouses and manufacturing facilities use the same configuration for fire reserve and process water, and condominiums and high-rise buildings use it for rooftop installations in tight-access mechanical spaces where retrofitting matters more than new-build simplicity. TankSmith also serves PEZA and freeport zone facilities, including SBMA, Clark, Cavite, and Batangas industrial estates, where site access and import-zone logistics are different from a standard NCR commercial install. Across all of these, the VFD duplex panel is the same component; what changes is the power range, tank material, and capacity selected for the site.
Warranty and What One Contract Covers
TankSmith's tank panels carry a 3-year warranty, with a design life of 20 to 25 years for the storage structure itself. The VFD duplex control panel and booster pump are supplied, installed, and commissioned as part of the same turnkey contract as the tank, meaning one team is accountable if the mechanical tank side, the pump, or the control panel does not perform as specified, rather than a buyer having to coordinate separate warranty claims across three vendors. See the full installation timeline for how commissioning fits into the overall schedule.
TankSmith does not manufacture the panels or tanks directly; they come from vetted, ISO 9001 certified partner factories, with TankSmith handling specification, sourcing, site installation, and commissioning in the Philippines. This single-team accountability model, covering both the storage side and the pressure side of a water system under one contract, is TankSmith's core differentiator and the reason buyers evaluating a VFD pump control panel should scope it alongside the tank and pump rather than as a standalone electrical purchase.
Request a Quote for VFD Duplex Control Panel Water Tank Systems
TankSmith provides turnkey quotations for VFD duplex control panel and commercial pressure booster pump systems integrated with modular water tanks. Each quote includes tank material selection (FRP, GRP, HDG steel, or stainless steel), capacity sizing (1,000 L to 500,000 L), pump specification (CDL or CDLF series, 0.37 kW to 200 kW), VFD duplex control panel with IP54 enclosure, mechanical and electrical installation, on-site commissioning, and 3-year FRP panel warranty. To request a quote, contact TankSmith with your required tank capacity, target outlet pressure, peak flow rate, installation location (Metro Manila, Luzon, Visayas, or Mindanao), and any specific material or certification requirements such as WRAS-certified FRP or GRP panels or NSF-compliant liners. TankSmith will provide a detailed proposal with hydraulic calculations, equipment specifications, installation timeline (typically 5 to 14 days for 20 KL to 500 KL systems), and delivered pricing including nationwide freight. Visit the primary pressure booster pump system page for additional technical details on pump selection and sizing.
Frequently Asked Questions
A pump control panel with VFD (variable frequency drive) is the electrical control box that runs a booster pump by adjusting motor speed instead of switching the pump fully on or off. It reads pressure from a sensor on the line and ramps the pump up or down to hold a steady setpoint as water demand changes through the day. TankSmith supplies these panels in a duplex configuration, running a duty pump and a standby pump, rated from 0.37 kW to 200 kW, in an IP54 enclosure rated for dust and splash protection. The panel is sized and commissioned together with the pump and the storage tank it serves, rather than sold as a standalone part.
Duplex means the panel runs two pumps, a duty unit that carries the load and a standby unit that takes over automatically if the duty pump faults or is taken offline for maintenance. The panel also alternates which pump is on duty on a scheduled basis, so wear and run hours are spread across both pumps instead of one pump absorbing all the cycling while the other sits unused. This is different from a simplex panel, which runs a single pump with no built-in redundancy. TankSmith specifies duplex VFD panels where continuous pressure matters, such as hospitals, hotels, and multi-floor buildings, because a single pump failure does not mean a pressure outage.
TankSmith's VFD duplex control panels are sized from 0.37 kW to 200 kW, matched to the CDL/CDLF vertical multistage centrifugal booster pumps they control. The correct panel rating depends on the pump's motor size and the building's peak demand, not the panel in isolation, so sizing is done against the pump curve and the tank's capacity rather than chosen from a catalog independently. Because tank, pump, and panel are quoted as one system, the kW rating, enclosure size, and alternation schedule are set before installation, so the system does not need re-tuning on site to compensate for a mismatched component.
IP54 means the panel enclosure is protected against dust ingress and against water splashed or sprayed on it from any direction, which suits a pump room, rooftop mechanical area, or other semi-exposed installation location. It is not rated for submersion or direct hose-down, so the panel still needs to be mounted under cover rather than fully outdoors and unprotected. TankSmith uses IP54 as the standard enclosure rating across its VFD duplex panel range, from the smallest 0.37 kW units up to 200 kW, and specifies panel placement as part of the overall installation plan during commissioning.
For most installs between 20 KL and 500 KL tank capacity, TankSmith completes supply, installation, and commissioning of the tank, booster pump, and VFD duplex control panel in 5 to 14 days, depending on tank capacity and how ready the site's civil works are before the crew arrives. Because all three components are specified and quoted together, the panel does not need separate scheduling or a second contractor to wire and commission it after the tank and pump are already in place. Installation timelines nationwide across the Philippines, including PEZA and freeport zones, follow the same 5 to 14 day range.
